Machine parameters

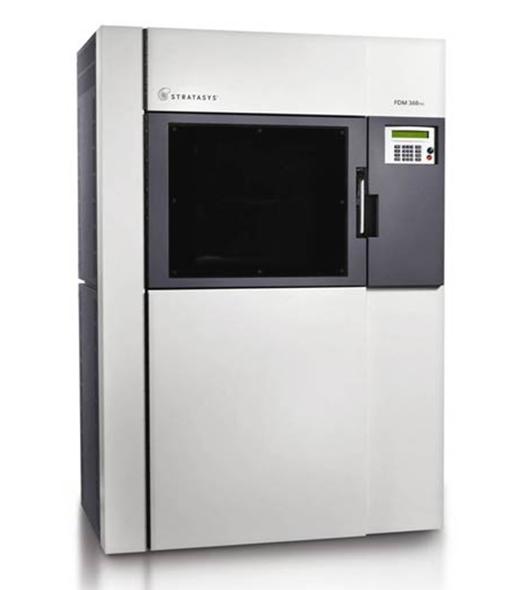

Machine model              FDM 360MC

3D Data                  STL,STP,IGS

Model Materials             ABS (temperature resistance is about 80℃)

Color                  Rice white

Build Size                355 x 254 x 254 mm (14 x 10 x 10 in.)

Part Accuracy              +/- .127 mm (+/- .005 in.) or +/- .0015 mm per
                    mm (+/- .0015 in. per inch) whichever is greater*

Note: Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.

How are models built?

Fortus systems are powered by Fused Deposition Modeling (FDM) Technology, which is simple and safe. They manufacture parts layer-by-layer in durable production-grade thermoplastics that really hold up.

1.Pre-Process: Load the part’s STL file into Insight pre-processing software.
2.Manufacture Parts: System builds part in thermoplastic material one layer at a time on precise tool paths.
3.Remove Supports: Remove temporary support structures in a hands-free soluble support tank.

Wind, rain, high heat and humid temperatures – it's no problem for Fortus parts. They won't warp, shrink or damage. That's because Fortus 3D Production Systems use thermoplastics, the same plastics used in injection molding.

System Highlights

• High accuracy and repeatability
• High resolution and feature detail

FDM is saving us time and money everywhere in our operations.

• Concept models.
• Functional testing in real-life conditions.
• Sharing new product designs with management, customers, sales, marketing and manufacturing
• Product research
• Fast tooling preparation for production or testing.
• With a Fortus 3D Production System, you can build 3D models and production parts with watertight      properties.
• When you need to get from concept to prototype to production fast, Fortus 3D Production Systems can help.
